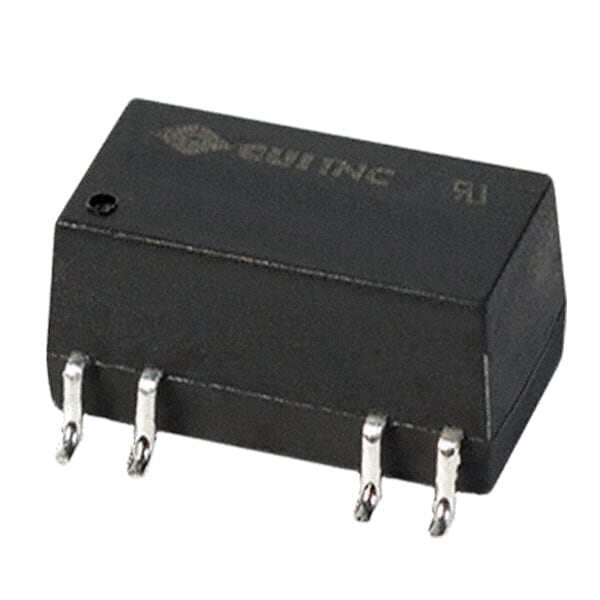

PES1-S24-D12-M-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC CONVERTER +/-12V 1W
PDF
/
Buying Options
Total Price: USD $4.36
Unit Price: USD $4.362767
≥1 USD $4.362767
Inventory: 1091
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 8.3mm
Height 7.366mm
Technical
Total Power Output-Max 1W
Voltage - Output 2 -12V
Current - Output (Max) 42mA 42mA
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Voltage - Output 1 12V
Max Output Current 42mA
Output Voltage 12V
Voltage - Input (Max) 26.4V
Voltage - Isolation 3kV
Efficiency 82%
Number of Outputs 2
JESD-30 Code R-PDMA-G6
Number of Functions 1
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.33W x 0.29 H 12.7mmx8.3mmx7.3mm
Series PES1-M (1W)
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C With Derating
Physical
Package / Case 8-SMD Module, 6 Leads
Mounting Type Surface Mount
Mount Surface Mount
