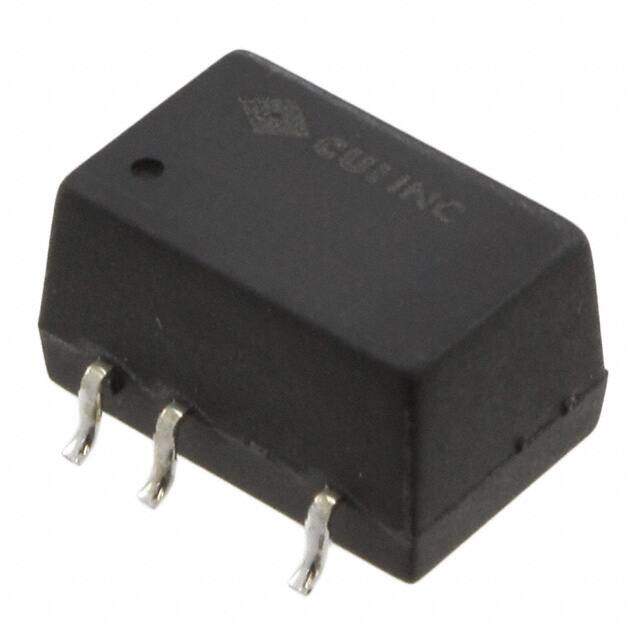

PES1-S12-S9-M-TR
RoHS
RoHS compliant
RoHS compliantPackage 8-SMD Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 9V 1W
PDF
/
Buying Options
Total Price: USD $5.74
Unit Price: USD $5.7376
≥1 USD $5.7376
≥10 USD $5.65664
≥100 USD $5.57568
≥500 USD $5.411296
≥1000 USD $5.24744
≥3000 USD $5.083496
Inventory: 286
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Technical
Operating Temperature -40°C~105°C With Derating
Packaging Tape & Reel (TR)
Published 2016
Series PES1-M (1W)
Size / Dimension 0.50Lx0.33W x 0.29 H 12.7mmx8.3mmx7.3mm
Feature SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Max Power Dissipation 1W
Technology HYBRID
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) 60
JESD-30 Code R-PDMA-G5
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency UL
Efficiency 80%
Voltage - Isolation 3kV
Voltage - Input (Max) 13.2V
Output Voltage 9V
Max Output Current 111mA
Voltage - Output 1 9V
Voltage - Input (Min) 10.8V
Input Voltage-Nom 12V
Trim/Adjustable Output NO
Protections CURRENT
Control Mode VOLTAGE-MODE
Total Power Output-Max 1W
Dimensions
Height 7.366mm
Width 8.3mm
Compliance
RoHS Status RoHS Compliant
