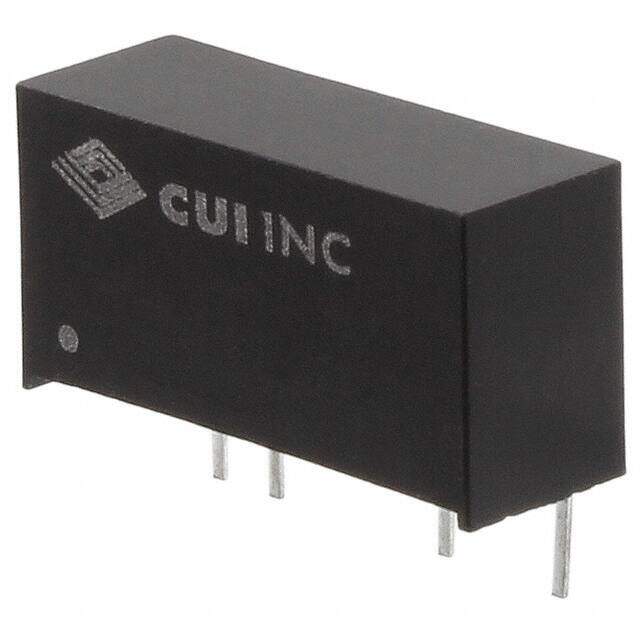

PEM2-S5-S24-S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 24V 2W
PDF
/
Buying Options
Total Price: USD $6.65
Unit Price: USD $6.6528
≥1 USD $6.6528
≥10 USD $6.56128
≥100 USD $6.46712
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2016
Series PEM2-S (2W)
Size / Dimension 0.77Lx0.28W x 0.39 H 19.6mmx7.0mmx10.0mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 2W
Max Power Dissipation 2W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T4
Number of Outputs 1
Efficiency 84%
Voltage - Isolation 3kV
Voltage - Input (Max) 5.5V
Output Voltage 24V
Max Output Current 83.3mA
Voltage - Output 1 24V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Total Power Output-Max 2W
Dimensions
Height 9.906mm
Width 7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
