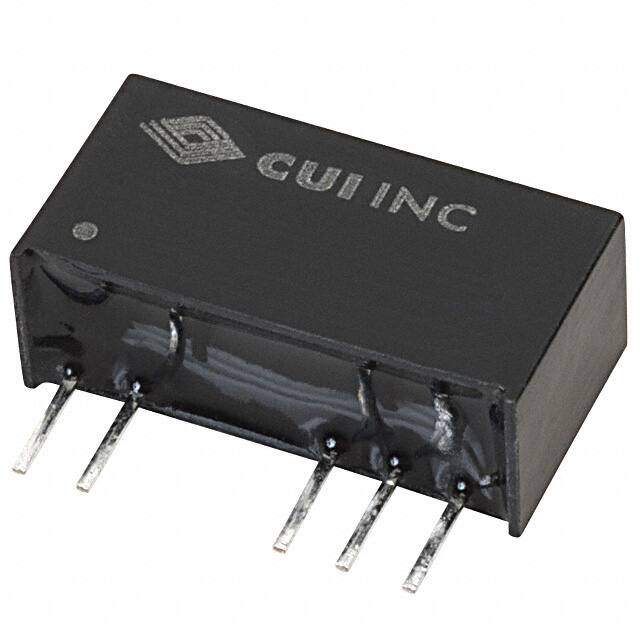

PEM2-S5-D5-S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-5V 2W
PDF
/
Inventory: 1138
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 7.112mm
Length 19.558mm
Height 9.906mm
Technical
Current - Output 2 -200mA
Current - Output 1 200mA
Max Input Voltage 5.5V
Min Input Voltage 4.5V
Voltage - Output 2 -5V
Output Power 2W
Current - Output (Max) 200mA 200mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Max Output Current 200mA
Voltage - Input (Max) 5.5V
Voltage - Isolation 3kV
Efficiency 84%
Number of Outputs 2
Max Power Dissipation 2W
Power (Watts) 2W
Applications ITE (Commercial)
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 0.77Lx0.28W x 0.39 H 19.6mmx7.0mmx10.0mm
Series PEM2-S (2W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Weight 2.400014g
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
