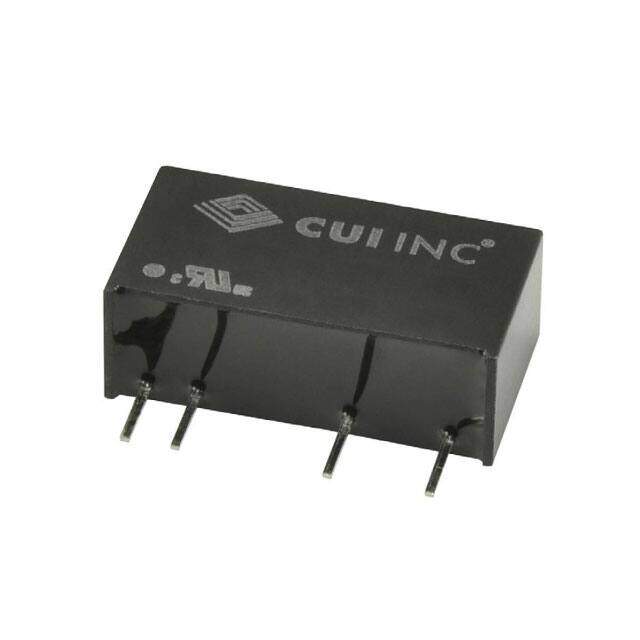

PEM1A-S5-S5-S

CUI Inc.
RoHS
RoHS RoHS compliant
Package 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $4.49
Unit Price: USD $4.488805
≥1 USD $4.488805
Inventory: 1158
Minimum: 1
-
+

Technical Details

Technical

Max Output Current 200mA
Voltage - Output 1 5V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Total Power Output-Max 1W
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 4kV
Efficiency 70%
Number of Outputs 1
JESD-30 Code R-PSMA-T4
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.77Lx0.28W x 0.40 H 19.6mmx7.2mmx10.2mm
Series PEM1A-S (1W)
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C

Dimensions

Height 10.16mm
Width 7.05mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free

Physical

Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 17 Weeks
