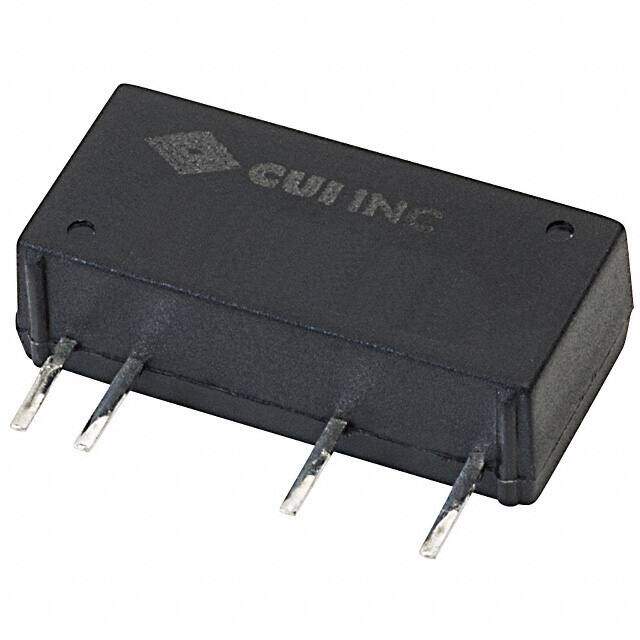

PEM1-S15-S5-S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 1W
PDF
/
Buying Options
Total Price: USD $10.41
Unit Price: USD $10.405887
≥1 USD $10.405887
≥10 USD $9.816872
≥100 USD $9.261197
≥500 USD $8.736985
≥1000 USD $8.242433
Inventory: 1176
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 6mm
Height 9.398mm
Technical
Total Power Output-Max 1W
Trim/Adjustable Output NO
Input Voltage-Nom 15V
Voltage - Input (Min) 13.5V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 16.5V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PSMA-P5
Pin Count 7/5
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.37 H 19.5mmx6.0mmx9.3mm
Series PEM1-S (1W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Package / Case 7-SIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
