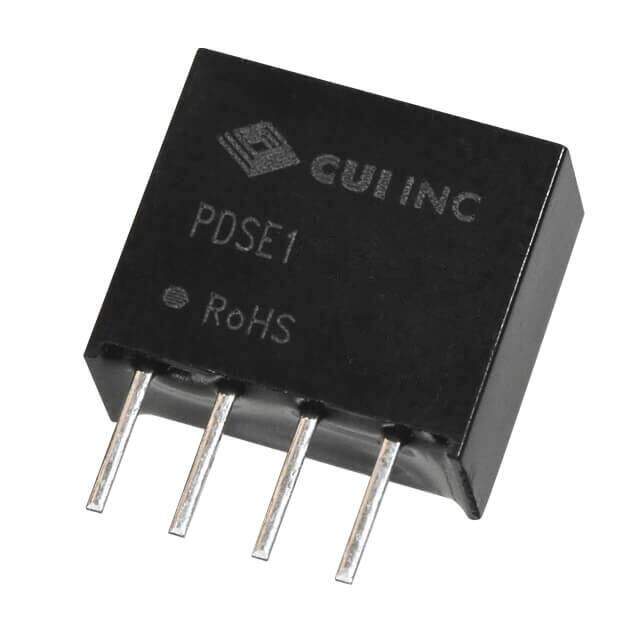

PDSE1-S5-S5-S
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED, 1 W, 4.5-5.5 VDC
PDF
/
Buying Options
Total Price: USD $3.88
Unit Price: USD $3.878338
≥1 USD $3.878338
≥10 USD $3.658809
≥100 USD $3.451702
≥500 USD $3.256325
≥1000 USD $3.072
Inventory: 1265
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Through Hole
Package / Case 4-SIP Module
Technical
Operating Temperature -40°C~105°C With Derating
Series PDSE1-S (1W)
Size / Dimension 0.46Lx0.24W x 0.40 H 11.6mmx6.0mmx10.2mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 1W
Number of Outputs 1
Efficiency 82%
Voltage - Isolation 3kV
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Input (Min) 4.5V
Current - Output (Max) 200mA
Compliance
RoHS Status RoHS Compliant
