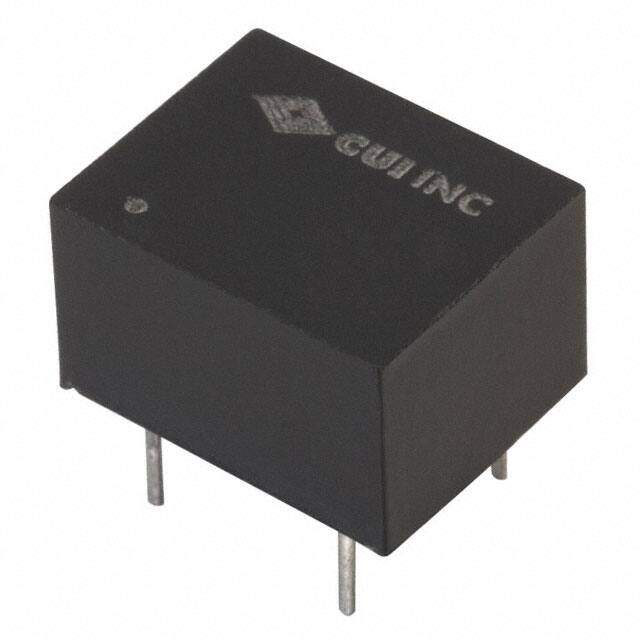

PDS1-S5-S3-D image
Favorite
PDS1-S5-S3-D image
Favorite

PDS1-S5-S3-D

CUI Inc.
RoHS
RoHS RoHS compliant
Package 7-DIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 3.3V 1W
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.910106
≥1 USD $3.910106
≥10 USD $3.688785
≥100 USD $3.479984
≥500 USD $3.282995
≥1000 USD $3.097171
Inventory: 1118
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 7.62mm

Technical

Isolation Isolated
Total Power Output-Max 1W
Current - Output 1 303mA
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Max Output Current 303mA
Output Voltage 3.3V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1.5kV
Efficiency 80%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PDMA-T4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 1W
Subcategory Other Analog ICs
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.50Lx0.39W x 0.30 H 12.8mmx10.0mmx7.7mm
Series PDS1-D (1W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Weight 1.799996g
Package / Case 7-DIP Module, 4 Leads
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 10 Weeks
