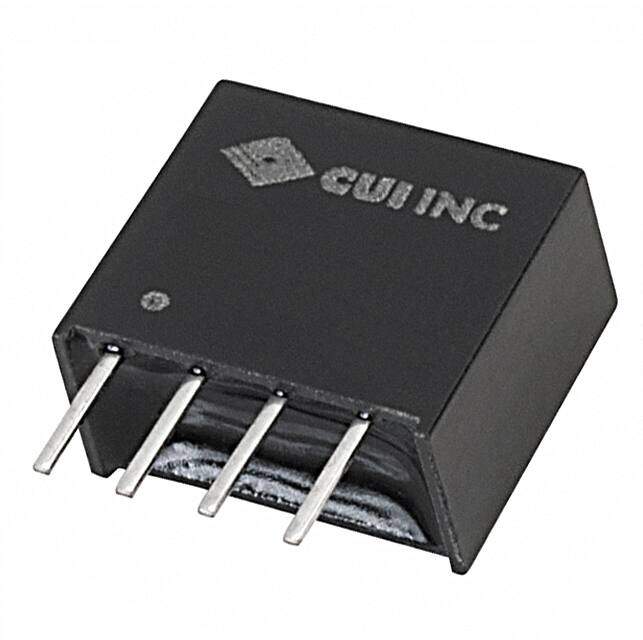

PDS1-S24-S3-S image
Favorite
PDS1-S24-S3-S image
Favorite

PDS1-S24-S3-S

CUI Inc.
RoHS
RoHS RoHS compliant
Package 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 3.3V 1W
PDF
/
Buying Options
Total Price: USD $8.85
Unit Price: USD $8.847453
≥1 USD $8.847453
≥10 USD $8.346658
≥100 USD $7.874195
≥500 USD $7.428491
≥1000 USD $7.00801
Inventory: 8966
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 9.906mm

Technical

Isolation Isolated
Total Power Output-Max 1W
Current - Output 1 303mA
Output Power 1W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 21.6V
Max Output Current 303mA
Output Voltage 3.3V
Voltage - Input (Max) 26.4V
Voltage - Isolation 1.5kV
Efficiency 80%
Number of Outputs 1
JESD-30 Code R-PSMA-T4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.24W x 0.40 H 11.6mmx6.0mmx10.2mm
Series PDS1-S (1W)
Published 2016
Packaging Tube
Operating Temperature -40°C~105°C With Derating

Physical

Weight 1.200007g
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
