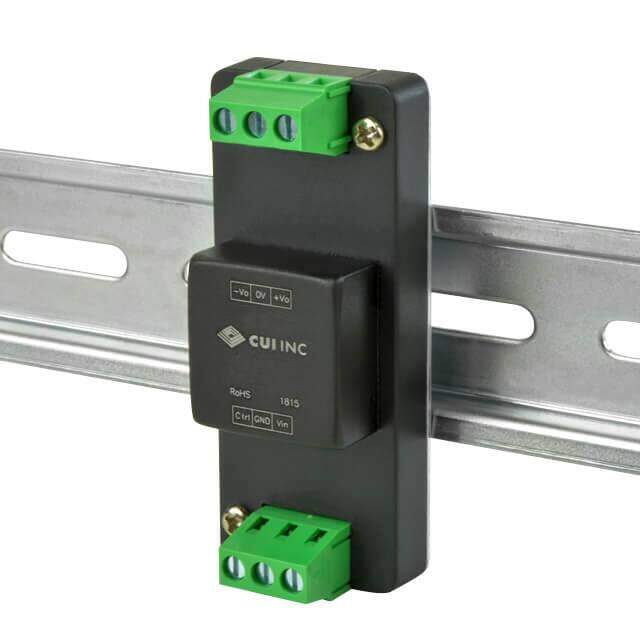

PDQE10-Q48-S15-DIN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / DC DC Converters
Description
DC-DC ISOLATED, 10 W, 4 1 VDC IN
PDF
/
Buying Options
Total Price: USD $18.62
Unit Price: USD $18.6208
≥1 USD $18.6208
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~85°C With Derating
Series PDQE10 (10W)
Size / Dimension 2.99Lx1.24W x 0.87 H 76.0mmx31.5mmx22.2mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 10W
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 87%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Current - Output (Max) 667mA
Compliance
RoHS Status RoHS Compliant
