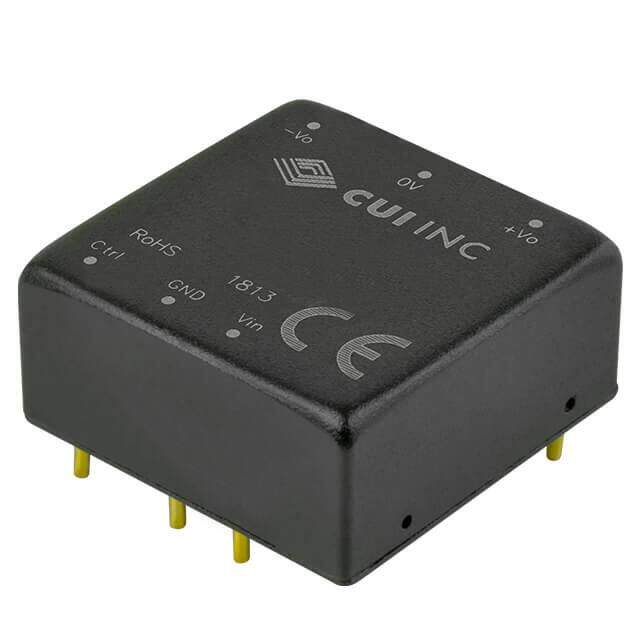

PDQE10-Q48-D5-D
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED, 10 W, 4 1 VDC IN
PDF
/
Buying Options
Total Price: USD $27.45
Unit Price: USD $27.449437
≥1 USD $27.449437
≥10 USD $25.895699
≥100 USD $24.429905
≥500 USD $23.047076
≥1000 USD $21.742527
Inventory: 5980
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Series PDQE10 (10W)
Size / Dimension 1.00Lx1.00W x 0.46 H 25.4mmx25.4mmx11.7mm
Feature Remote On/Off, OCP, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 10W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Number of Functions 1
JESD-30 Code S-XDMA-P6
Number of Outputs 2
Efficiency 83%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Output Voltage 5V
Voltage - Output 1 5V
Voltage - Input (Min) 18V
Input Voltage-Nom 48V
Trim/Adjustable Output NO
Current - Output (Max) 1A 1A
Voltage - Output 2 -5V
Compliance
RoHS Status RoHS Compliant
