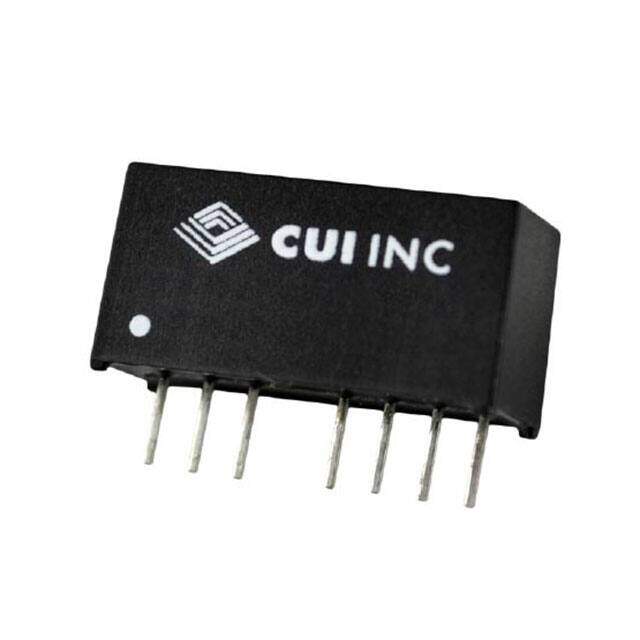

PDQ2-D48-D15-S
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-15V 2W
PDF
/
Inventory: 1132
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 11.176mm
Technical
Total Power Output-Max 2W
Voltage - Output 2 -15V
Control Features Enable, Active Low
Current - Output (Max) 67mA 67mA
Trim/Adjustable Output NO
Input Voltage-Nom 48V
Voltage - Input (Min) 36V
Voltage - Output 1 15V
Max Output Current 67mA
Output Voltage 15V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 84%
Number of Outputs 2
JESD-30 Code R-PSMA-T7
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 2W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.1mmx11.2mm
Series PDQ2-S (2W)
Published 2016
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
