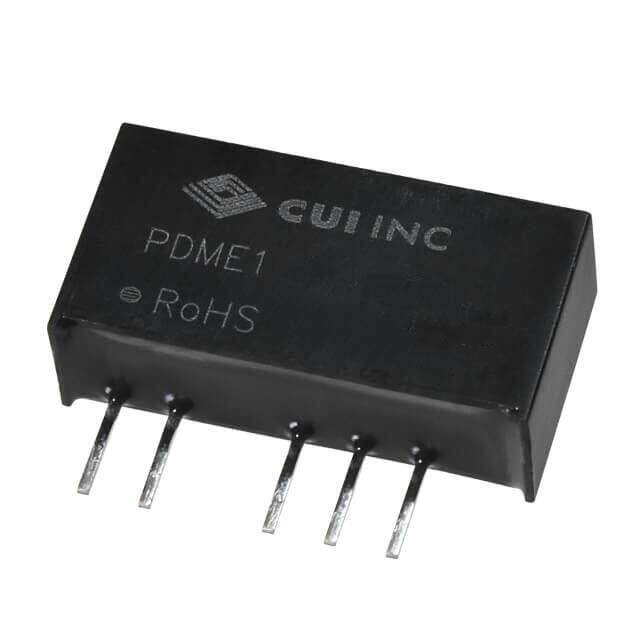

PDME1-S5-D9-S
RoHS
RoHS compliant
RoHS compliantPackage 7-SIP Module, 5 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC-DC ISOLATED, 1 W, 4.5-5.5 VDC
PDF
/
Buying Options
Total Price: USD $2.35
Unit Price: USD $2.345319
≥1 USD $2.345319
≥10 USD $2.212566
≥100 USD $2.087328
≥500 USD $1.969182
≥1000 USD $1.857714
Inventory: 1125
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Output 2 -9V
Current - Output (Max) 56mA 56mA
Voltage - Input (Min) 4.5V
Voltage - Output 1 9V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1.5kV
Efficiency 83%
Number of Outputs 2
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.77Lx0.24W x 0.40 H 19.7mmx6.0mmx10.2mm
Series PDME1-S (1W)
Operating Temperature -40°C~105°C With Derating
Physical
Package / Case 7-SIP Module, 5 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 9 Weeks
