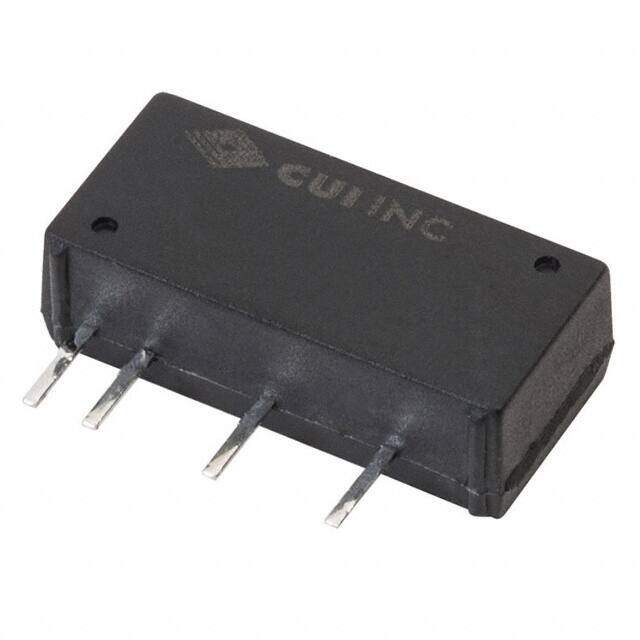

PDM1-S5-S15-S image
Favorite
PDM1-S5-S15-S image
Favorite

PDM1-S5-S15-S

CUI Inc.
RoHS
RoHS RoHS compliant
Package 6-SIP Module, 4 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 15V 1W
PDF
/
Buying Options
Total Price: USD $5.39
Unit Price: USD $5.39328
≥1 USD $5.39328
≥10 USD $5.088
≥100 USD $4.8
≥500 USD $4.5283
≥1000 USD $4.27198
≥3000 USD $4.03017
Inventory: 350
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 6-SIP Module, 4 Leads
Weight 2.400014g

Technical

Operating Temperature -40°C~105°C
Packaging Tube
Published 2016
Series PDM1-S (1W)
Size / Dimension 0.77Lx0.24W x 0.37 H 19.5mmx6.0mmx9.3mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Type Isolated Module
Applications ITE (Commercial)
Subcategory Other Analog ICs
Max Power Dissipation 1W
Technology HYBRID
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSMA-T5
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 81%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 5.5V
Output Voltage 15V
Max Output Current 67mA
Voltage - Output 1 15V
Voltage - Input (Min) 4.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Output Power 1W
Current - Output 1 670mA
Total Power Output-Max 2W

Dimensions

Height 9.398mm
Width 7mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
