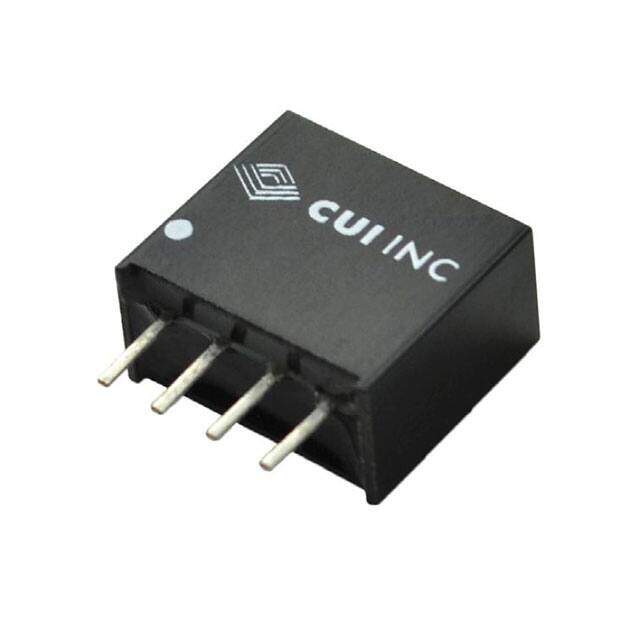

PCSA1-S5-S5-S
RoHS
RoHS compliant
RoHS compliantPackage 4-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
PCSA1-S Series 1 W 5 V Input 5 V Output Isolated DC/DC Converter - SIP-4
PDF
/
Buying Options
Total Price: USD $3.98
Unit Price: USD $3.9776
≥1 USD $3.9776
≥10 USD $3.9248
≥100 USD $3.86848
≥500 USD $3.754142
≥1000 USD $3.640525
≥3000 USD $3.526758
Inventory: 2592
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 6mm
Height 1.016m
Technical
Total Power Output-Max 1W
Trim/Adjustable Output NO
Input Voltage-Nom 5V
Voltage - Input (Min) 4.5V
Voltage - Output 1 5V
Max Output Current 200mA
Output Voltage 5V
Voltage - Input (Max) 5.5V
Voltage - Isolation 1kV
Efficiency 79%
Number of Outputs 1
JESD-30 Code R-PSMA-T4
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 1W
Power (Watts) 1W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 4
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.24W x 40.0 H 11.6mmx6.0mmx10.2mm
Series PSCA1-S (1W)
Published 2016
Packaging Tube
Operating Temperature -40°C~100°C
Physical
Package / Case 4-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
