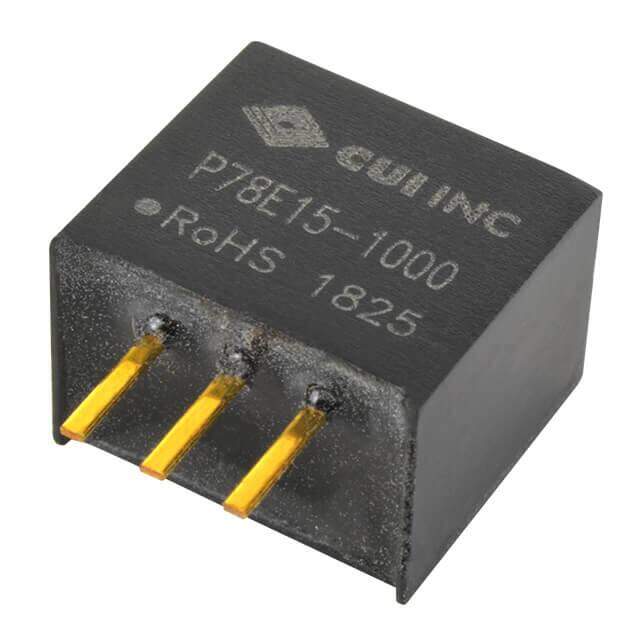

P78E15-1000 image
Favorite
P78E15-1000 image
Favorite

P78E15-1000

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC-DC NON-ISOLATED, 1.0 A, 8 36
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.68224
≥100 USD $2.6444
≥500 USD $2.488561
≥1000 USD $2.410892
≥3000 USD $2.333091
Inventory: 314
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mounting Type Through Hole
Package / Case 3-SIP Module
Surface Mount NO

Technical

Operating Temperature -40°C~85°C With Derating
Series P78E-1000
Size / Dimension 0.46Lx0.31W x 0.41 H 11.6mmx8.0mmx10.4mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 3
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 15W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 96%
Voltage - Input (Max) 36V
Output Voltage 15V
Voltage - Output 1 15V
Voltage - Input (Min) 20V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 1A

Dimensions

Width 8mm

Compliance

RoHS Status RoHS Compliant
