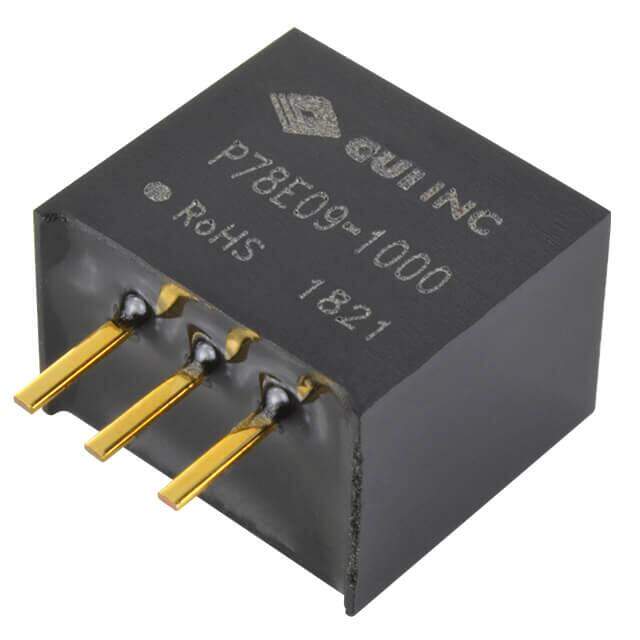

P78E09-1000
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
P78E-1000 Series 13 to 36 V Input 9 V Output Non-Isolated DC Switching Regulator
PDF
/
Buying Options
Total Price: USD $2.72
Unit Price: USD $2.7192
≥1 USD $2.7192
≥10 USD $2.68224
≥100 USD $2.6444
≥500 USD $2.488561
≥1000 USD $2.410892
Inventory: 300
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mounting Type Through Hole
Package / Case 3-SIP Module
Surface Mount NO
Technical
Operating Temperature -40°C~85°C With Derating
Series P78E-1000
Size / Dimension 0.46Lx0.31W x 0.41 H 11.6mmx8.0mmx10.4mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 3
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 9W
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 94%
Voltage - Input (Max) 36V
Output Voltage 9V
Voltage - Output 1 9V
Voltage - Input (Min) 13V
Input Voltage-Nom 24V
Trim/Adjustable Output NO
Current - Output (Max) 1A
Total Power Output-Max 9W
Dimensions
Width 8mm
Compliance
RoHS Status RoHS Compliant
