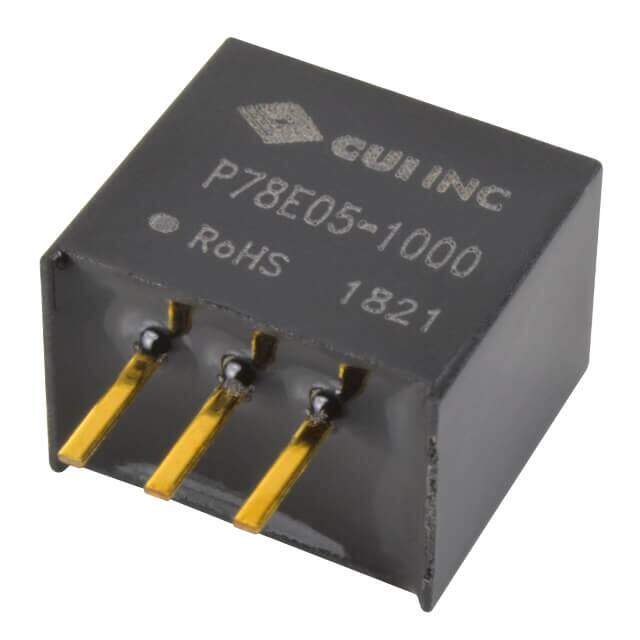

P78E05-1000 image
Favorite
P78E05-1000 image
Favorite

P78E05-1000

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC-DC NON-ISOLATED, 1.0 A, 8 36
PDF
/
Inventory: 9278
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mounting Type Through Hole
Package / Case 3-SIP Module
Surface Mount NO

Technical

Operating Temperature -40°C~85°C With Derating
Series P78E-1000
Size / Dimension 0.46Lx0.31W x 0.41 H 11.6mmx8.0mmx10.4mm
Feature SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 3
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Power (Watts) 5W
Additional Feature OP TEMP-MAX IS 80 DEG CEL WHEN VIN>26V
Technology HYBRID
Terminal Position SINGLE
Number of Functions 1
Terminal Pitch 2.54mm
JESD-30 Code R-PSMA-T3
Number of Outputs 1
Efficiency 93%
Voltage - Input (Max) 36V
Total Power Output-Max 5W
Current - Output (Max) 1A
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 8V
Voltage - Output 1 5V
Output Voltage 5V

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 8mm
