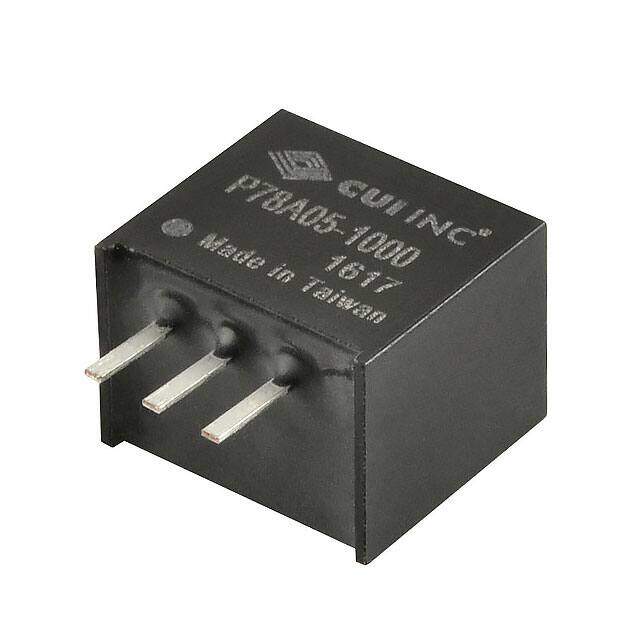

P78A05-1000 image
Favorite
P78A05-1000 image
Favorite

P78A05-1000

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 5W
PDF
/
Buying Options
Total Price: USD $4.9
Unit Price: USD $4.9016
≥1 USD $4.9016
≥10 USD $4.82944
≥100 USD $4.75992
≥500 USD $4.479622
≥1000 USD $4.339553
≥3000 USD $4.199589
Inventory: 1589
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 8.5mm
Height 10.414mm

Technical

Total Power Output-Max 5W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 8V
Voltage - Output 1 5V
Max Output Current 1A
Output Voltage 5V
Voltage - Input (Max) 28V
Efficiency 91%
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 5W
Power (Watts) 5W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.33W x 0.41 H 11.6mmx8.5mmx10.4mm
Series P78A-1000
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
