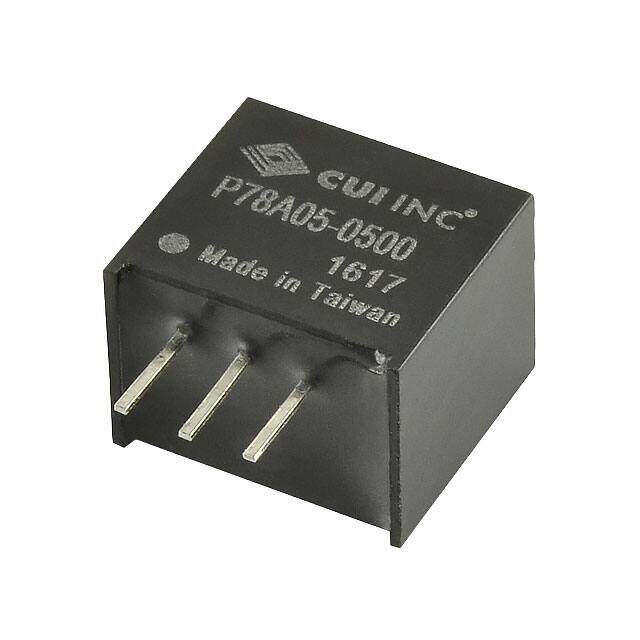

P78A05-0500
RoHS
RoHS compliant
RoHS compliantPackage 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5V 3W
PDF
/
Buying Options
Total Price: USD $4.51
Unit Price: USD $4.5144
≥1 USD $4.5144
≥10 USD $4.44576
≥100 USD $4.38152
≥500 USD $4.124058
≥1000 USD $3.9952
≥3000 USD $3.866271
Inventory: 1105
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 8.5mm
Height 10.414mm
Technical
Total Power Output-Max 2.5W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 7V
Voltage - Output 1 5V
Max Output Current 500mA
Output Voltage 5V
Voltage - Input (Max) 28V
Efficiency 92%
Number of Outputs 1
JESD-30 Code R-PSMA-T3
Reach Compliance Code unknown
Terminal Pitch 2.54mm
Number of Functions 1
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3W
Power (Watts) 3W
Applications ITE (Commercial)
Type Linear Regulator Replacement
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature SCP
Size / Dimension 0.46Lx0.33W x 0.41 H 11.6mmx8.5mmx10.4mm
Series P78A-0500
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C
Physical
Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
