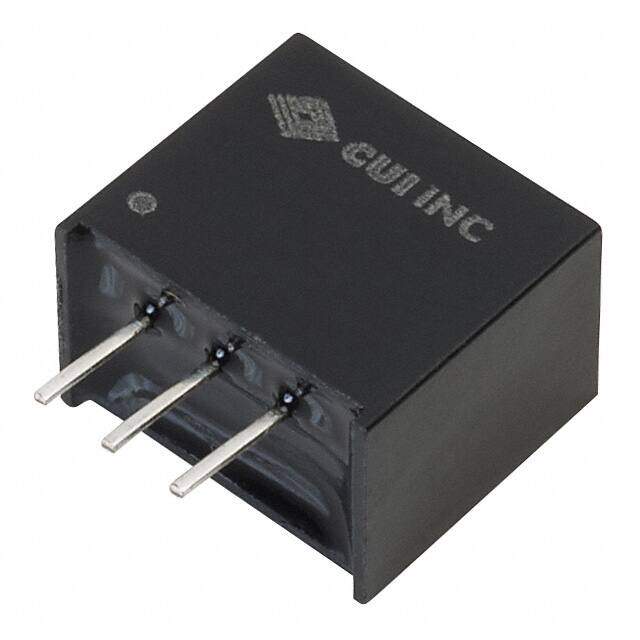

P7805-Q24-S5-S image
Favorite
P7805-Q24-S5-S image
Favorite

P7805-Q24-S5-S

CUI Inc.
RoHS
RoHS RoHS compliant
Package 3-SIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER 5V 3W
PDF
/
Buying Options
Total Price: USD $4.82
Unit Price: USD $4.8224
≥1 USD $4.8224
≥10 USD $4.752
≥100 USD $4.68424
≥500 USD $4.408386
≥1000 USD $4.270658
≥3000 USD $4.132929
Inventory: 3657
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 7.5mm
Height 10.16mm

Technical

Isolation Non-Isolated
Current - Output 1 500mA
Output Power 2.5W
Trim/Adjustable Output NO
Input Voltage-Nom 24V
Voltage - Input (Min) 6.5V
Max Output Current 500mA
Output Voltage 5V
Voltage - Input (Max) 32V
Efficiency 94%
Number of Outputs 1
JESD-30 Code R-PSMA-P3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3W
Applications ITE (Commercial)
Type Linear Regulator Replacement
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, SCP
Size / Dimension 0.46Lx0.30W x 0.40 H 11.6mmx7.5mmx10.2mm
Series P7805-S
Published 2016
Packaging Tube
Operating Temperature -40°C~85°C

Physical

Package / Case 3-SIP Module
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 9 Weeks
