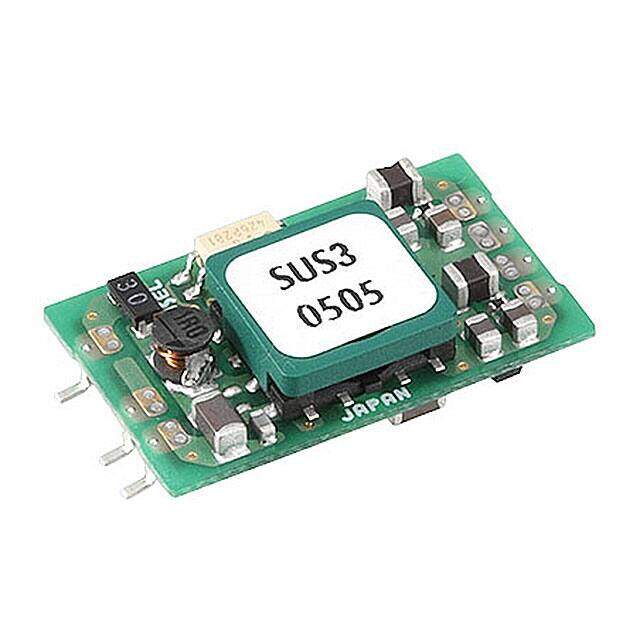

SUS31212BP
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 3W 12V 0.25A SMD/SMT
PDF
/
Inventory: 5115
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 24mm
Height 6.604mm
Technical
Nominal Input Voltage 12V
Total Power Output-Max 3W
Current - Output 1 250mA
Output Power 3W
Output Current 250mA
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 18V
Voltage - Isolation 500V
Efficiency 81%
Number of Outputs 1
JESD-30 Code R-XDMA-G6
Pin Count 6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Size / Dimension 0.94Lx0.59W x 0.26 H 24.0mmx15.1mmx6.5mm
Series SUS (3W)
Published 2011
Operating Temperature -40°C~85°C With Derating
Physical
Weight 3.000003g
Package / Case 6-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
