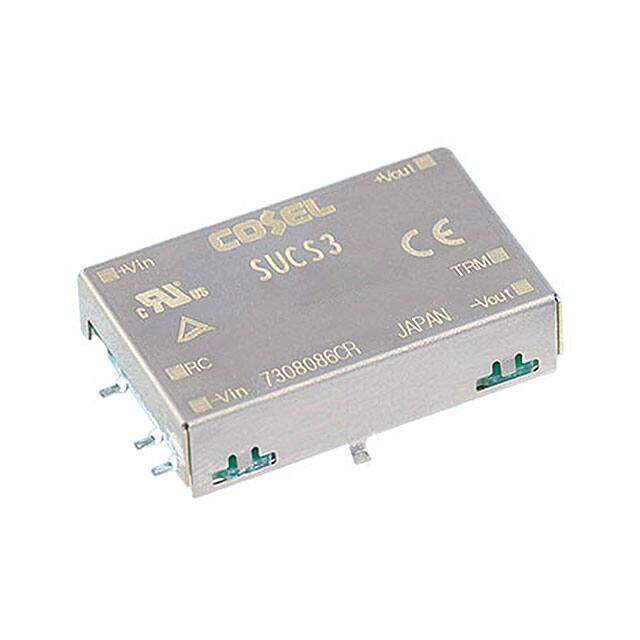

SUCS32412BP
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 3W 12V 0.25A SMD/SMT
PDF
/
Inventory: 4905
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 25mm
Height 7.112mm
Technical
Nominal Input Voltage 24V
Total Power Output-Max 3W
Current - Output 1 250mA
Output Power 3W
Output Current 250mA
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Input (Max) 36V
Voltage - Isolation 500V
Efficiency 79%
Number of Outputs 1
JESD-30 Code R-XDMA-G6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Depth 7mm
Number of Functions 1
Peak Reflow Temperature (Cel) 225
Terminal Form GULL WING
Terminal Position DUAL
Technology HYBRID
Applications ITE (Commercial)
Terminal Finish MATTE TIN
Type Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.98Lx0.61W x 0.28 H 25.0mmx15.5mmx7.0mm
Series SUCS (3W)
Published 2011
Operating Temperature -40°C~85°C With Derating
Physical
Weight 5.000005g
Package / Case 6-SMD Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
