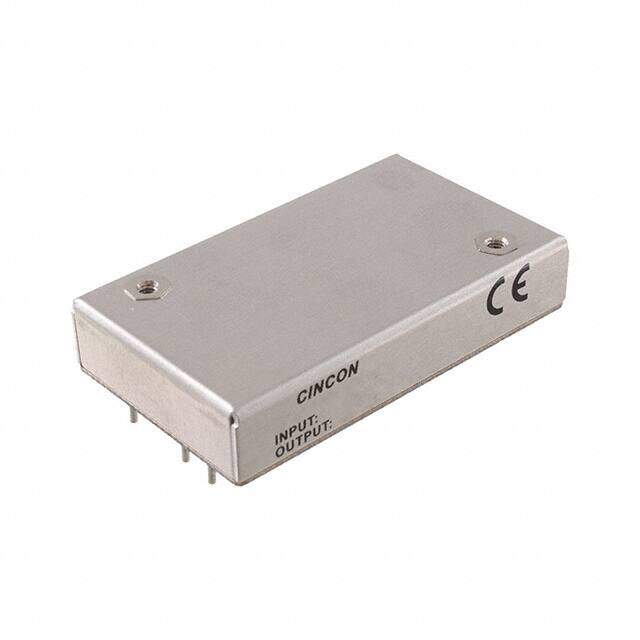

ECLB75W-48D24
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-24V 75W
PDF
/
Inventory: 3470
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case 7-DIP Module
Technical
Operating Temperature -40°C~85°C With Derating
Series ECLB75W (75W)
Size / Dimension 2.05Lx1.20W x 0.40 H 52.0mmx30.5mmx10.2mm
Feature Remote On/Off
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 75W
Number of Outputs 2
Efficiency 91.5%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Voltage - Output 1 24V
Voltage - Input (Min) 18V
Current - Output (Max) 1.56A 1.56A
Control Features Enable, Active High
Voltage - Output 2 -24V
Compliance
RoHS Status ROHS3 Compliant
