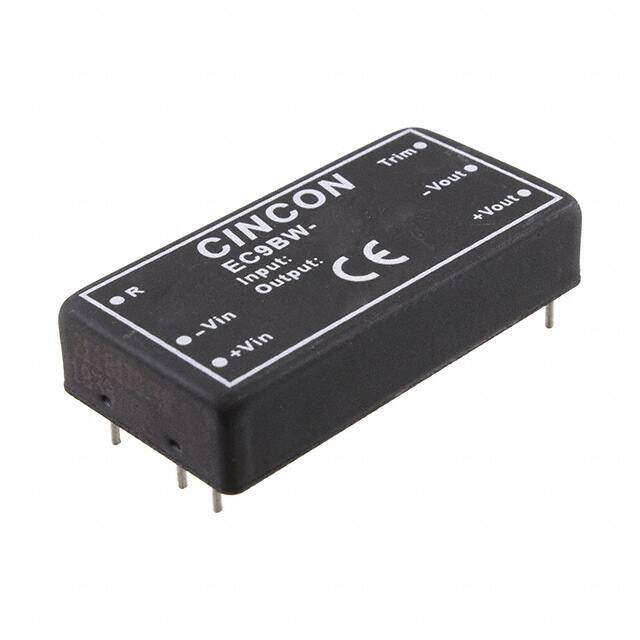

EC9BW-24S33
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 30W 24V to 3.3V 7.5A
PDF
/
Inventory: 8376
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case 6-DIP Module
Technical
Operating Temperature -40°C~85°C With Derating
Published 2015
Series EC9BW (30W)
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 25W
Number of Outputs 1
Efficiency 88.5%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Voltage - Output 1 3.3V
Voltage - Input (Min) 9V
Output Power 30W
Control Features Enable, Active High
Current - Output 1 7.5A
Nominal Input Voltage 24V
Compliance
RoHS Status ROHS3 Compliant
