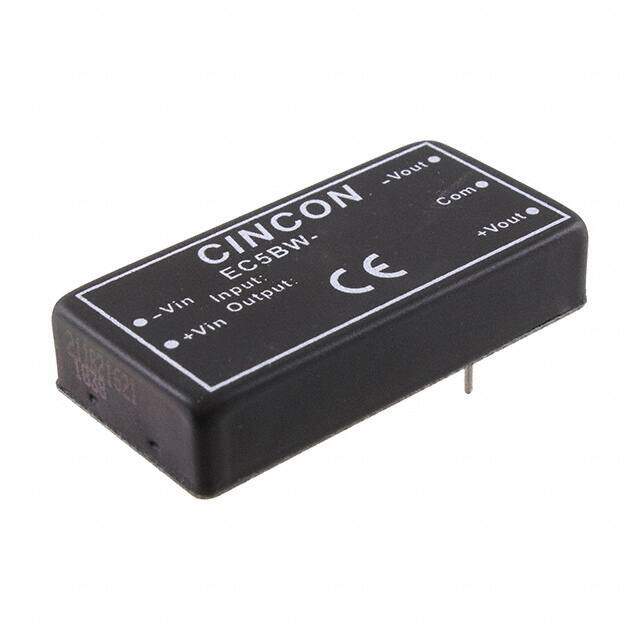

EC5BW-48S12T
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
ISOLATED DC/DC CONVERTERS 9.9-15
PDF
/
Inventory: 6282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Control Features Enable, Active High
Current - Output (Max) 1.25A
Voltage - Input (Min) 18V
Voltage - Output 1 12V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 1
Power (Watts) 15W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series EC5BW (15W)
Operating Temperature -40°C~85°C With Derating
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
