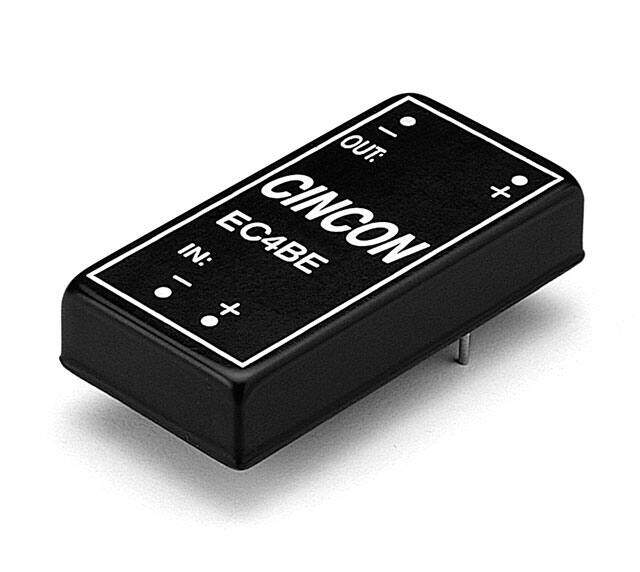

EC4BE25 image
Favorite
EC4BE25 image
Favorite
RoHS
RoHS RoHS compliant
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 10W, 2.00x1.00x0.40 36-72Vin, +/-15Vout
PDF
/
Inventory: 5578
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Current - Output 2 333mA
Nominal Input Voltage 48V
Current - Output 1 333mA
Voltage - Output 2 -15V
Output Power 5W
Current - Output (Max) 333mA 333mA
Voltage - Input (Min) 36V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 72V
Voltage - Isolation 500V
Efficiency 82%
Qualification Status Not Qualified
Number of Outputs 2
Subcategory Other Analog ICs
Power (Watts) 10W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series EC4BE (10W)
Published 2005
Operating Temperature -40°C~100°C With Derating

Physical

Package / Case 5-DIP Module
Mounting Type Through Hole

Supply Chain

Factory Lead Time 8 Weeks
