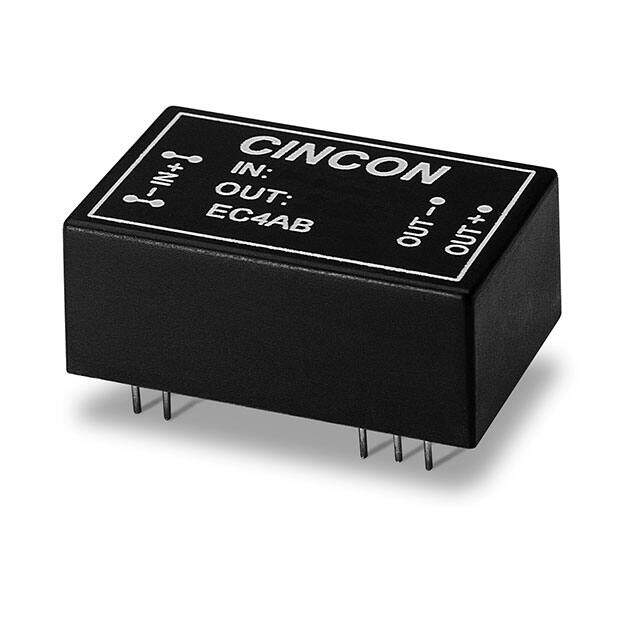

EC4AB05 image
Favorite
EC4AB05 image
Favorite
RoHS
RoHS RoHS compliant
Package 24-DIP Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 5-6W 9-18VDC +/-15V +/-190mA
PDF
/
Inventory: 2722
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Current - Output 2 190mA
Nominal Input Voltage 12V
Current - Output 1 190mA
Voltage - Output 2 -15V
Output Power 3W
Current - Output (Max) 190mA 190mA
Voltage - Input (Min) 9V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 18V
Voltage - Isolation 500V
Efficiency 81%
Qualification Status Not Qualified
Number of Outputs 2
Terminal Position DUAL
Subcategory Other Analog ICs
Power (Watts) 5.7W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 12
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.50 H 31.8mmx20.3mmx12.7mm
Series EC4AB (6W)
Published 2005
Operating Temperature -25°C~71°C

Physical

Surface Mount NO
Package / Case 24-DIP Module, 14 Leads
Mounting Type Through Hole

Supply Chain

Factory Lead Time 8 Weeks
