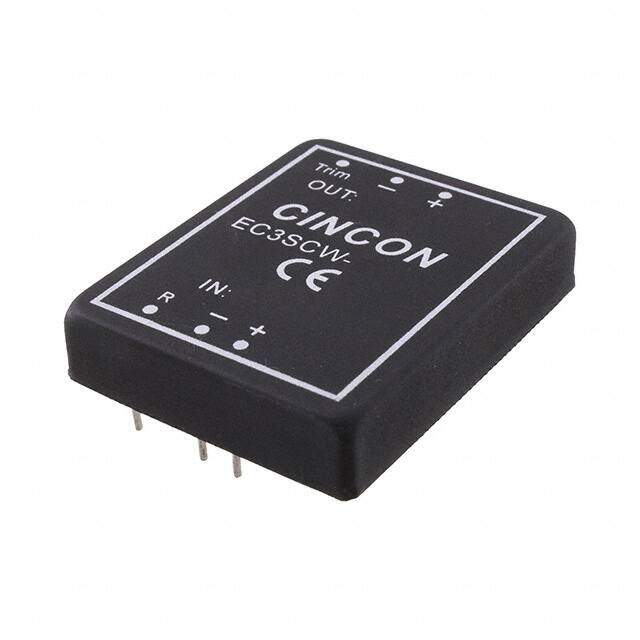

EC3SCW-24S12
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 20-30W, 4:1 Input 9-36Vin, 12Vout
PDF
/
Buying Options
Total Price: USD $26.5
Unit Price: USD $26.4968
≥1 USD $26.4968
Inventory: 111
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Nominal Input Voltage 24V
Current - Output 1 2.5A
Control Features Enable, Active High
Output Power 30W
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 91%
Number of Outputs 1
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.60W x 0.40 H 50.8mmx40.6mmx10.2mm
Series EC3SCW (30W)
Published 2015
Operating Temperature -40°C~85°C With Derating
Physical
Package / Case 8-DIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
