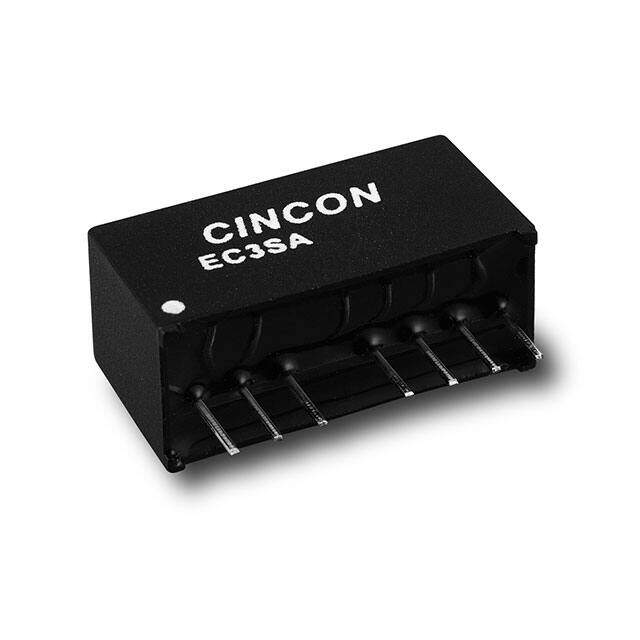

EC3SA-12S33N
RoHS
RoHS compliant
RoHS compliantPackage 8-SIP Module, 7 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 3W 9-18V 3.3V 700mA SIP-8
PDF
/
Buying Options
Total Price: USD $9.45
Unit Price: USD $9.449846
≥1 USD $9.449846
≥10 USD $8.914945
≥100 USD $8.410331
≥500 USD $7.934274
≥1000 USD $7.485163
Inventory: 1965
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Nominal Input Voltage (DC) 12V
Current - Output 1 700mA
Output Power 3W
Voltage - Input (Min) 9V
Voltage - Output 1 3.3V
Voltage - Input (Max) 18V
Voltage - Isolation 1.5kV
Efficiency 76%
Number of Outputs 1
Power (Watts) 2.3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Remote On/Off, SCP
Size / Dimension 0.86Lx0.36W x 0.44 H 21.8mmx9.2mmx11.1mm
Series EC3SA (3W)
Operating Temperature -40°C~85°C With Derating
Physical
Package / Case 8-SIP Module, 7 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
