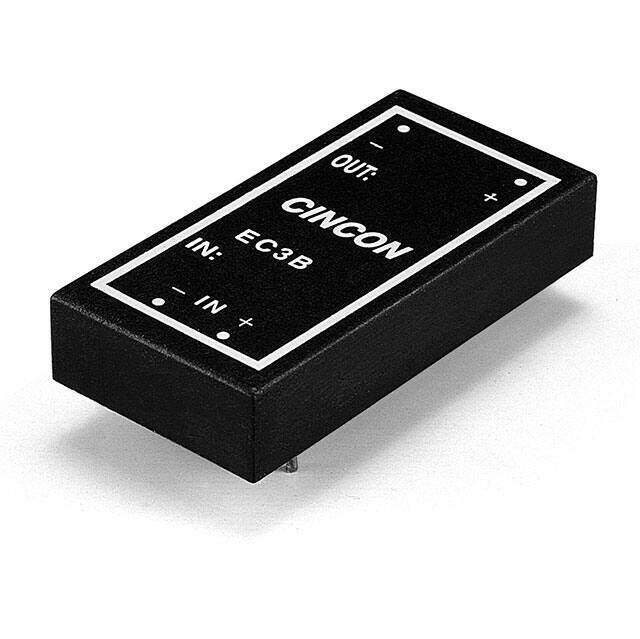

EC3BB24
RoHS
RoHS compliant
RoHS compliantPackage 6-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 7.5W/EN55022 ClassB 36-72Vin, +/-12Vout
PDF
/
Inventory: 4962
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output 2 310mA
Nominal Input Voltage 48V
Current - Output 1 310mA
Voltage - Output 2 -12V
Output Power 4W
Current - Output (Max) 310mA 310mA
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Voltage - Input (Max) 72V
Voltage - Isolation 1.5kV
Efficiency 81%
Number of Outputs 2
Power (Watts) 7.5W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Feature SCP
Size / Dimension 2.00Lx1.00W x 0.40 H 50.8mmx25.4mmx10.2mm
Series EC3BB (7.5W)
Operating Temperature -25°C~71°C
Physical
Package / Case 6-DIP Module
Mounting Type Through Hole
