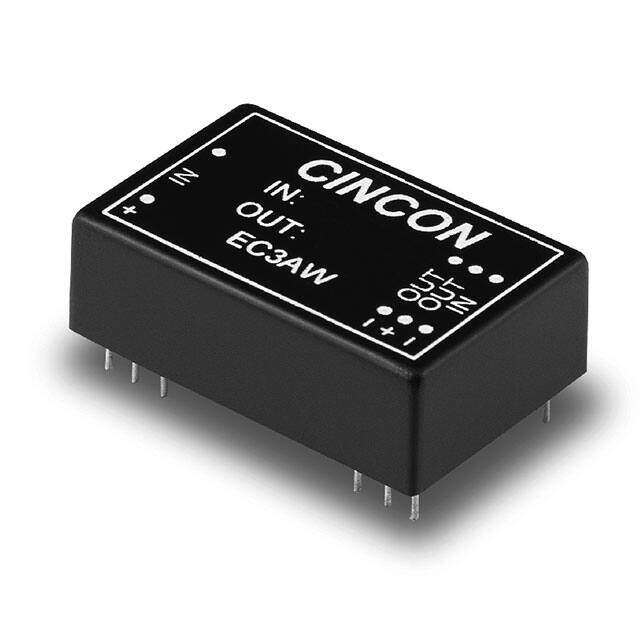

EC3AW05
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 3W 9-36VDC +/-12VDC +/-125mA
PDF
/
Buying Options
Total Price: USD $10.19
Unit Price: USD $10.18954
≥1 USD $10.18954
≥10 USD $9.612774
≥100 USD $9.068654
≥500 USD $8.555331
≥1000 USD $8.071067
Inventory: 6962
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output 2 125mA
Nominal Input Voltage 24V
Current - Output 1 125mA
Voltage - Output 2 -12V
Output Power 2W
Current - Output (Max) 125mA 125mA
Voltage - Input (Min) 9V
Voltage - Output 1 12V
Voltage - Input (Max) 36V
Voltage - Isolation 500V
Efficiency 72%
Number of Outputs 2
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series EC3AW (3W)
Published 2012
Operating Temperature -25°C~71°C
Physical
Package / Case 24-DIP Module, 14 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
