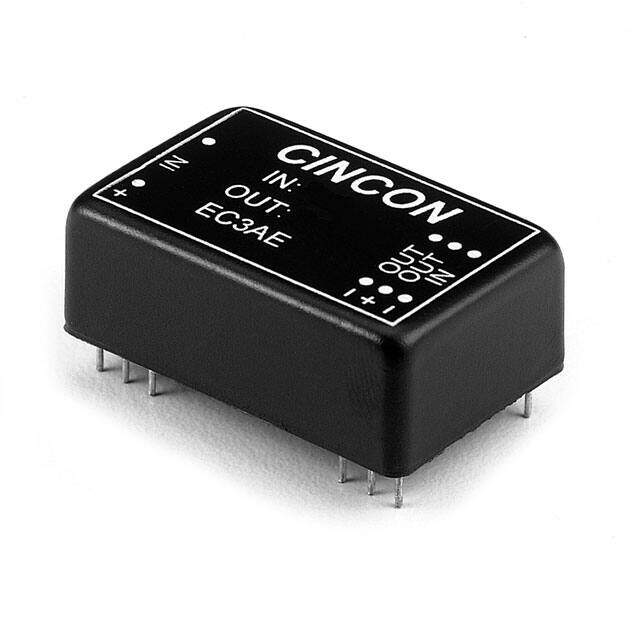

EC3AE45M
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 12 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 3W 48VDC +/-15VDC +/-100mA
PDF
/
Inventory: 8870
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Current - Output 2 100mA
Nominal Input Voltage 48V
Current - Output 1 100mA
Voltage - Output 2 -15V
Output Power 2W
Current - Output (Max) 100mA 100mA
Voltage - Input (Min) 43.2V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Input (Max) 52.8V
Voltage - Isolation 500V
Efficiency 61%
Qualification Status Not Qualified
Number of Outputs 2
Terminal Position DUAL
Subcategory Other Analog ICs
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Number of Terminations 24
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series EC3AE (3W)
Published 2005
Operating Temperature -25°C~100°C With Derating
Physical
Surface Mount NO
Package / Case 24-DIP Module, 12 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
