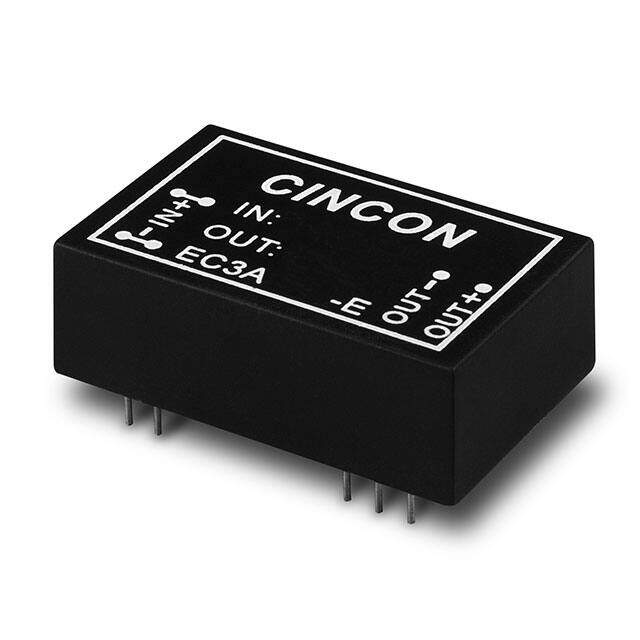

EC3A35HM-E
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module, 14 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
ISOLATED DC/DC CONVERTERS 3W 9-1
PDF
/
Inventory: 6020
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Output 2 -12V
Current - Output (Max) 125mA 125mA
Voltage - Input (Min) 36V
Voltage - Output 1 12V
Voltage - Input (Max) 72V
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 2
Power (Watts) 3W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature SCP, UVLO
Size / Dimension 1.25Lx0.80W x 0.40 H 31.8mmx20.3mmx10.2mm
Series EC3A-E (3W)
Operating Temperature -40°C~100°C With Derating
Physical
Package / Case 24-DIP Module, 14 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 8 Weeks
