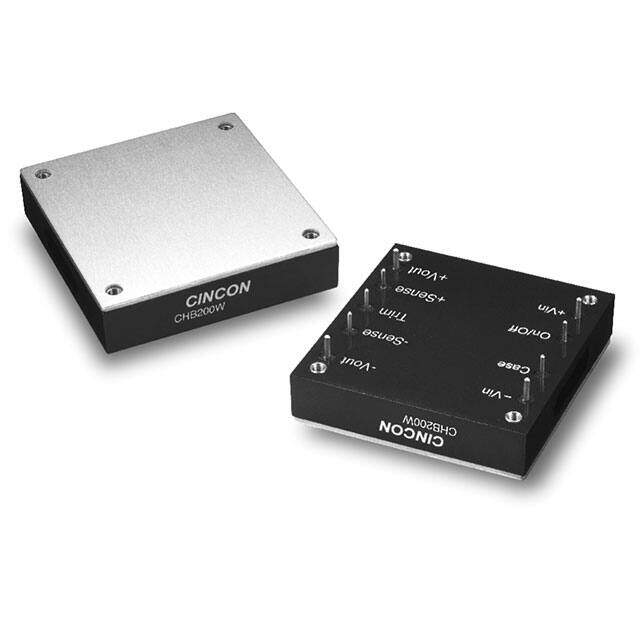

CHB200W-24S24 image
Favorite
CHB200W-24S24 image
Favorite
RoHS
RoHS RoHS compliant
Package Half Brick
Category Power Supplies - Board Mount / DC DC Converters
Description Isolated DC/DC Converters 200W 10-36VDC 24VDC 8.3A
PDF
/
Buying Options
Total Price: USD $154.91
Unit Price: USD $154.9064
≥1 USD $154.9064
≥10 USD $153.67792
≥100 USD $152.44856
≥500 USD $142.613504
≥1000 USD $137.695712
Inventory: 80
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 57.9mm

Technical

Nominal Input Voltage (DC) 24V
Current - Output 1 8.3A
Control Features Enable, Active High
Output Power 200W
Trim/Adjustable Output YES
Input Voltage-Nom 24V
Voltage - Input (Min) 10V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Input (Max) 36V
Voltage - Isolation 1.5kV
Efficiency 87%
Number of Outputs 1
JESD-30 Code R-PDMA-P9
Pin Count 9
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 199W
Applications ITE (Commercial)
Type Isolated Module
ECCN Code EAR99
Number of Terminations 9
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.40Lx2.28W x 0.52 H 61.0mmx57.9mmx13.2mm
Series CHB200W (200W)
Operating Temperature -40°C~100°C With Derating

Physical

Surface Mount NO
Package / Case Half Brick
Mounting Type Through Hole

Supply Chain

Factory Lead Time 8 Weeks
