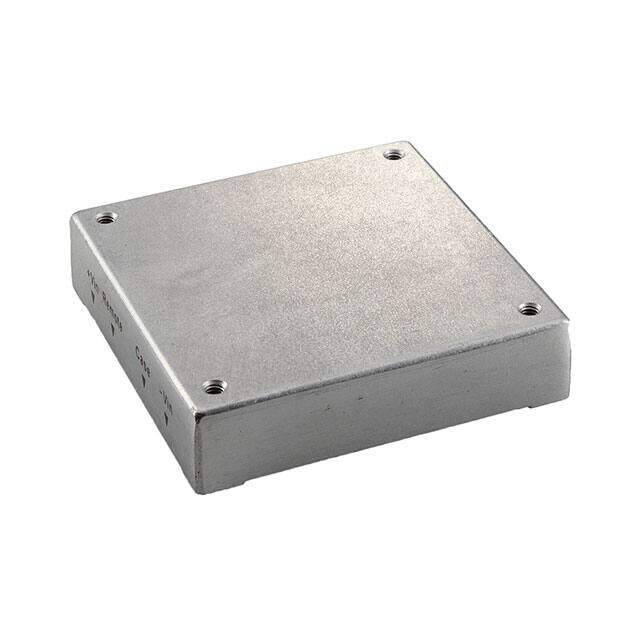

CHB100W-24S12
RoHS
RoHS compliant
RoHS compliantPackage Half Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
Isolated DC/DC Converters 66-100W 9-36V 12V 8.3A
PDF
/
Buying Options
Total Price: USD $87.48
Unit Price: USD $87.483749
≥1 USD $87.483749
≥10 USD $82.531842
≥100 USD $77.860224
≥500 USD $73.453045
≥1000 USD $69.295321
Inventory: 3347
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Half Brick
Technical
Operating Temperature -40°C~100°C With Derating
Published 2012
Series CHB100W (100W)
Size / Dimension 2.40Lx2.28W x 0.50 H 61.0mmx57.9mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Number of Outputs 1
Efficiency 88.5%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Input (Min) 9V
Output Power 100W
Control Features Enable, Active High
Current - Output 1 8.3A
Nominal Input Voltage 24V
Compliance
RoHS Status ROHS3 Compliant
