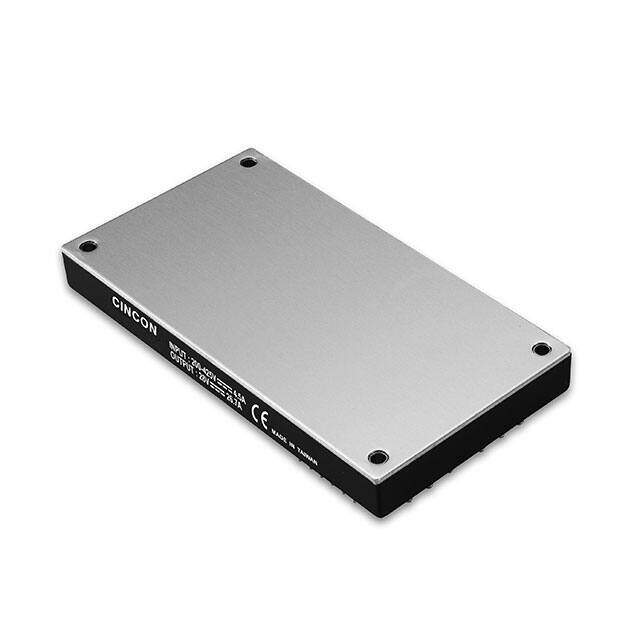

CFB750-300S15N
RoHS
RoHS compliant
RoHS compliantPackage Full Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
ISOLATED DC/DC CONVERTERS DC-DC
PDF
/
Inventory: 3135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Full Brick
Technical
Operating Temperature -40°C~85°C With Derating
Series CFB750-300 (750W)
Size / Dimension 4.60Lx2.40W x 0.50 H 116.8mmx61.0mmx12.7mm
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 750W
Number of Outputs 1
Efficiency 88%
Voltage - Isolation 3kV
Voltage - Input (Max) 425V
Voltage - Output 1 15V
Voltage - Input (Min) 200V
Current - Output (Max) 50A
Control Features Enable, Active Low
Compliance
RoHS Status ROHS3 Compliant
