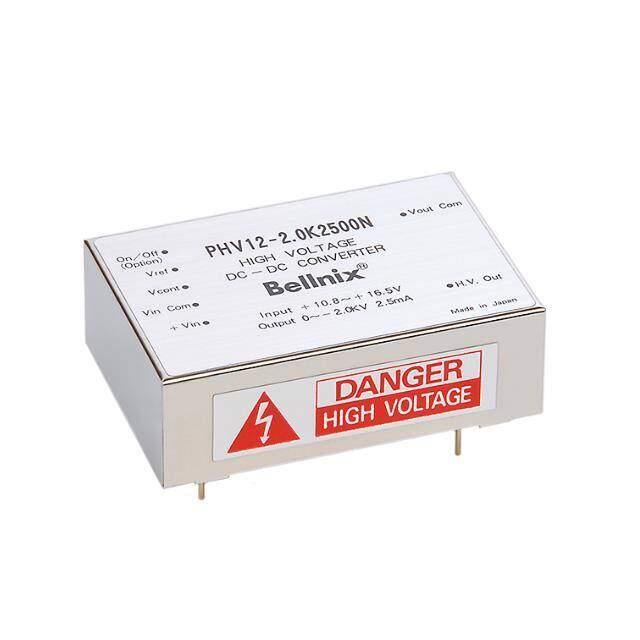

PHV12-1.0K5000N
RoHS
RoHS compliant
RoHS compliantPackage 7-DIP Module, 6 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
LOW NOISE HV -1KV/5W
PDF
/
Buying Options
Total Price: USD $275.07
Unit Price: USD $275.0704
≥1 USD $275.0704
≥10 USD $270.63696
≥100 USD $266.2
≥500 USD $248.453216
Inventory: 21
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 40mm
Length 60mm
Height Seated (Max) 20.5mm
Technical
Total Power Output-Max 5W
Control Features Enable, Active Low
Current - Output (Max) 5mA
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Output 1 -1000V
Output Voltage 10.8V
Voltage - Input (Max) 16.5V
Efficiency 72%
Number of Outputs 1
JESD-30 Code R-MDMA-P6
Number of Functions 1
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Power (Watts) 5W
Applications ITE (Commercial)
Type High Voltage - Non-Isolated Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Remote On/Off
Size / Dimension 2.36Lx1.57W x 0.79 H 60.0mmx40.0mmx20.0mm
Series PHV
Operating Temperature -10°C~50°C With Derating
Physical
Surface Mount NO
Package / Case 7-DIP Module, 6 Leads
Mounting Type Through Hole
Supply Chain
Factory Lead Time 16 Weeks
