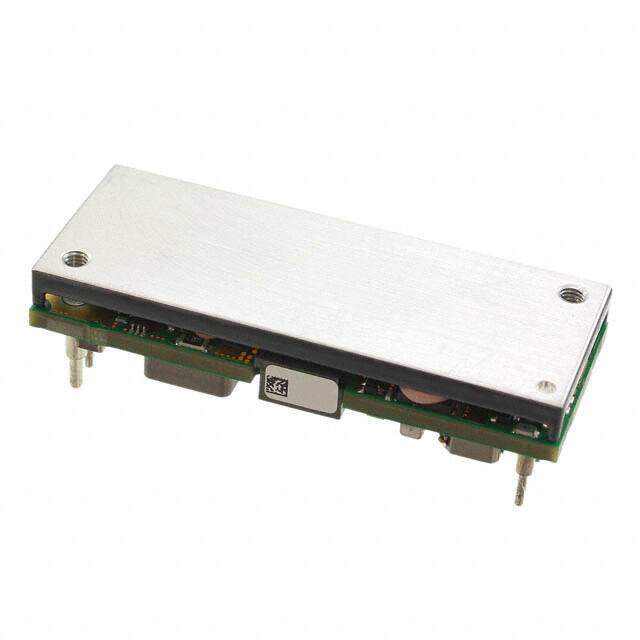

SQL48T20033-NDABG
RoHS
/
Package 8-DIP Module, 1/8 Brick
Category Power Supplies - Board Mount / DC DC Converters
Description
DC/DC Converters 3.3V at 20A baseplate
PDF
/
Buying Options
Total Price: USD $106.7
Unit Price: USD $106.70305
≥1 USD $106.70305
≥10 USD $103.2612
≥100 USD $99.81935
≥500 USD $89.49285
Inventory: 153
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series SQL48T20033
Size / Dimension 2.30Lx0.90W x 0.52 H 58.4mmx22.9mmx13.1mm
Feature Remote On/Off, UVLO
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 66W
Number of Outputs 1
Efficiency 91%
Voltage - Isolation 2.25kV
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Voltage - Input (Min) 36V
Current - Output (Max) 20A
Control Features Enable, Active Low
