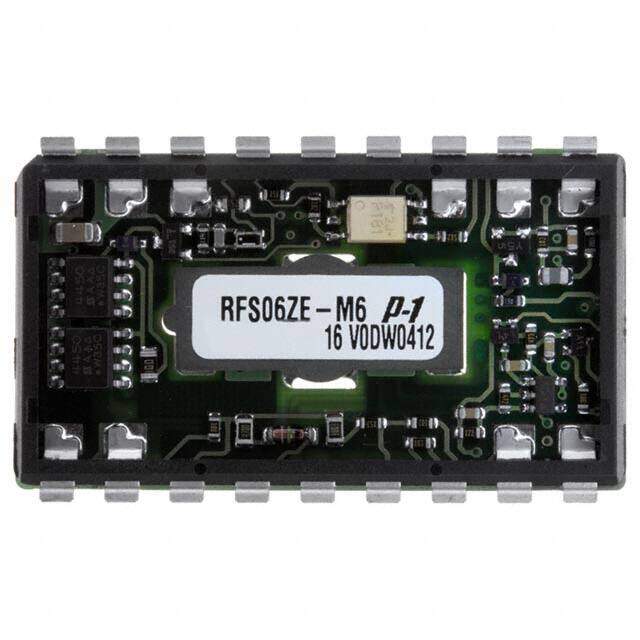

RFS06ZE-M6
RoHS
/
Package 18-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 3.3V 20W
PDF
/
Inventory: 3455
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 18-SMD Module
Technical
Operating Temperature -40°C~100°C
Packaging Tray
Series RFS (20W)
Size / Dimension 1.87Lx1.00W x 0.37 H 47.5mmx25.4mmx9.4mm
Feature Remote On/Off, OCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 20W
Number of Outputs 1
Efficiency 85%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Voltage - Input (Min) 36V
Current - Output (Max) 6A
Control Features Enable, Active High
Compliance
RoHS Status Non-RoHS Compliant
