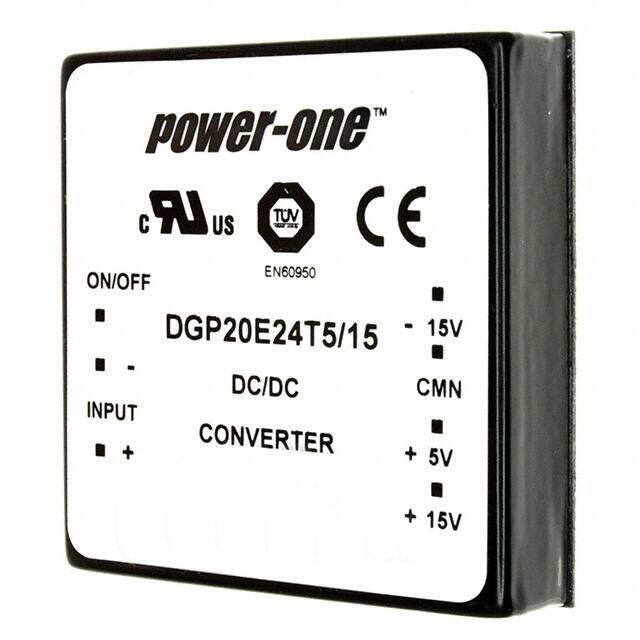

DGP20E24T5/15
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 3-OUT 5V/15V/-15V 2.5A/0.25A/-0.25A 20W 7-Pin
PDF
/
Inventory: 1570
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Voltage - Output 3 -15V
Voltage - Output 2 15V
Control Features Enable, Active High
Current - Output (Max) 2.5A 250mA 250mA
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Voltage - Input (Max) 36V
Voltage - Isolation 700V
Efficiency 84%
Number of Outputs 3
Power (Watts) 20W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OVP, SCP
Size / Dimension 2.02Lx2.02W x 0.45 H 51.3mmx51.3mmx11.4mm
Series DGP20 (20W)
Packaging Bulk
Operating Temperature -55°C~100°C
Physical
Package / Case 7-DIP Module
Mounting Type Through Hole
