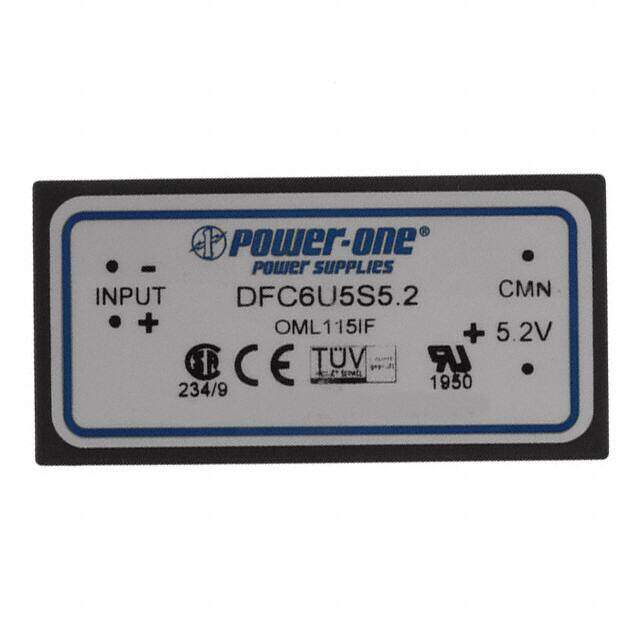

DFC6U5S5.2
RoHS
/
Package 4-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 5.2V 6W
PDF
/
Inventory: 8173
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 4-DIP Module
Surface Mount NO
Technical
Operating Temperature -50°C~100°C
Packaging Bulk
Series DFC6 (6W)
Size / Dimension 2.00Lx1.00W x 0.45 H 50.8mmx25.4mmx11.4mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 6W
HTS Code 8504.40.95.80
Subcategory Other Analog ICs
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XDMA-P4
Number of Outputs 1
Qualification Status Not Qualified
Voltage - Isolation 700V
Voltage - Input (Max) 16V
Output Voltage 5.2V
Voltage - Output 1 5.2V
Voltage - Input (Min) 3.5V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 1.2A
Total Power Output-Max 6W
Compliance
RoHS Status Non-RoHS Compliant
