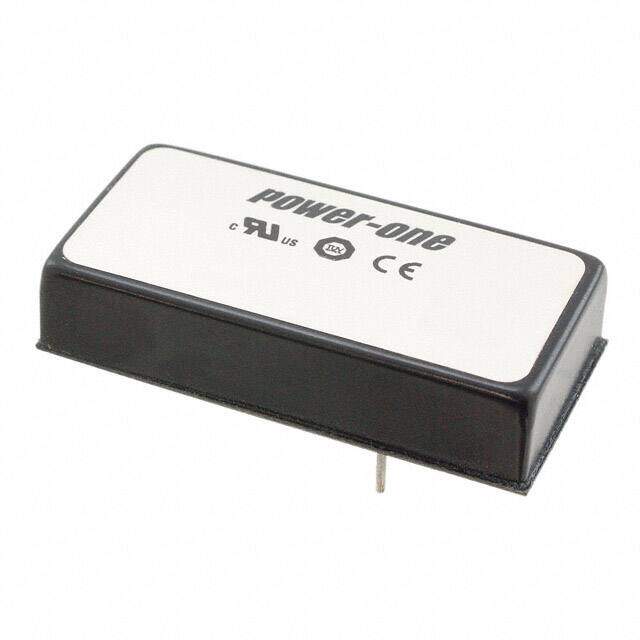

DFC10U48D12
RoHS
/
Package 5-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER +/-12V 10W
PDF
/
Buying Options
Total Price: USD $83.68
Unit Price: USD $83.675508
≥1 USD $83.675508
≥10 USD $78.939154
≥100 USD $74.470906
≥500 USD $70.255566
≥1000 USD $66.278832
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Mounting Type Through Hole
Package / Case 5-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series DFC10 (10W)
Size / Dimension 2.02Lx1.02W x 0.42 H 51.3mmx25.9mmx10.7mm
Feature OCP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module
Applications ITE (Commercial)
Power (Watts) 10W
Number of Outputs 2
Efficiency 79%
Voltage - Isolation 1.544kV
Voltage - Input (Max) 72V
Voltage - Output 1 12V
Voltage - Input (Min) 18V
Current - Output (Max) 415mA 415mA
Voltage - Output 2 -12V
Compliance
RoHS Status Non-RoHS Compliant
