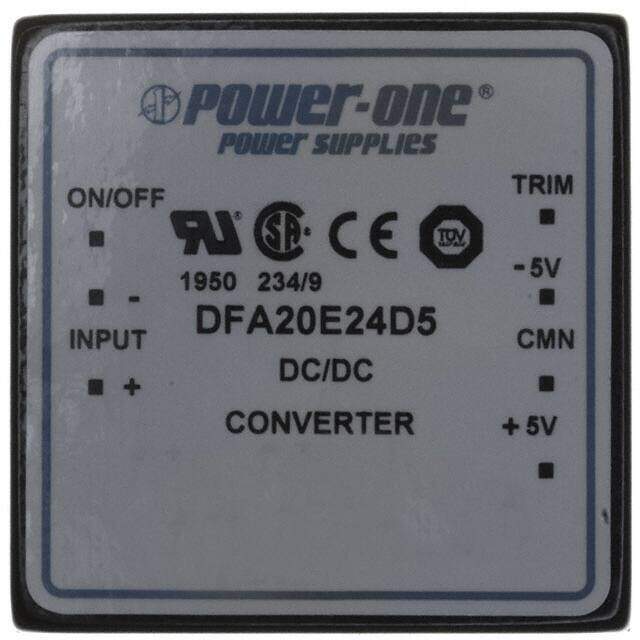

DFA20E24D5 image
Favorite
DFA20E24D5 image
Favorite
RoHS
/
Package 7-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description DC DC CONVERTER +/-5V 20W
PDF
/
Inventory: 9648
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Technical

Voltage - Output 2 -5V
Current - Output (Max) 1.7A 1.7A
Voltage - Input (Min) 18V
Voltage - Output 1 5V
Voltage - Input (Max) 36V
Voltage - Isolation 700V
Efficiency 81%
Number of Outputs 2
Power (Watts) 20W
Applications ITE (Commercial)
Type Isolated Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 2.02Lx2.02W x 0.45 H 51.3mmx51.3mmx11.4mm
Series DFA20
Packaging Bulk
Operating Temperature -50°C~100°C

Physical

Package / Case 7-DIP Module
Mounting Type Through Hole
