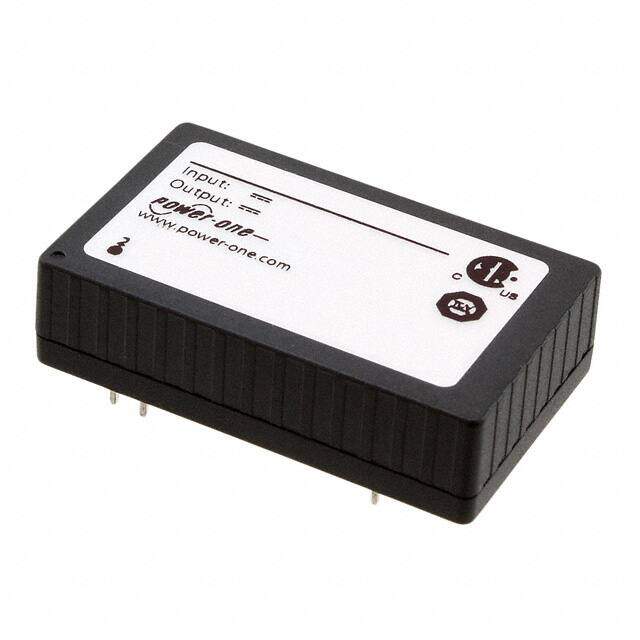

5IMX4-12-9
RoHS
/
Package 24-DIP Module, 13 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 12V 4W
PDF
/
Inventory: 6990
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 24-DIP Module, 13 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~71°C
Packaging Bulk
Series Melcher IMX4 (4W)
Size / Dimension 1.30Lx0.79W x 0.33 H 33.0mmx20.1mmx8.4mm
JESD-609 Code e0
Feature OCP, OTP, OVP, SCP
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 7
ECCN Code EAR99
Type Isolated Module, Conformal Coated
Terminal Finish TIN LEAD
Applications ITE (Commercial)
Power (Watts) 4W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 24
JESD-30 Code R-XDMA-P7
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 83%
Voltage - Isolation 1kV
Voltage - Input (Max) 16.8V
Output Voltage 12V
Voltage - Output 1 12V
Voltage - Input (Min) 4.7V
Input Voltage-Nom 5V
Trim/Adjustable Output NO
Current - Output (Max) 340mA
Compliance
RoHS Status Non-RoHS Compliant
