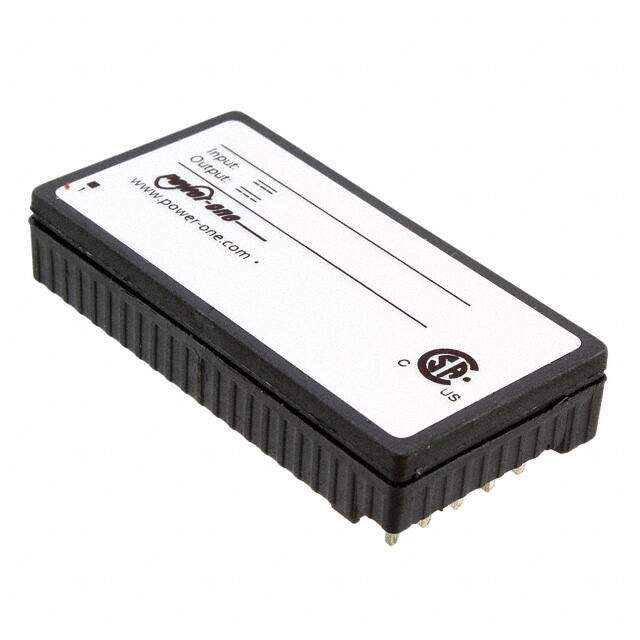

40IMX7-05-05-8
RoHS
/
Package 14-DIP Module, 9 Leads
Category Power Supplies - Board Mount / DC DC Converters
Description
Module DC-DC 2-OUT 5V 0.7A 7W 9-Pin
PDF
/
Inventory: 4806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Voltage - Output 2 5V
Current - Output (Max) 700mA 700mA
Voltage - Input (Min) 16.8V
Voltage - Output 1 5V
Voltage - Input (Max) 75V
Voltage - Isolation 1.5kV
Efficiency 82%
Number of Outputs 2
Power (Watts) 7W
Applications ITE (Commercial), Railway
Type Isolated Module, Conformal Coated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Size / Dimension 2.00Lx1.00W x 0.41 H 50.8mmx25.4mmx10.4mm
Series Melcher IMX7 (7W)
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case 14-DIP Module, 9 Leads
Mounting Type Through Hole
