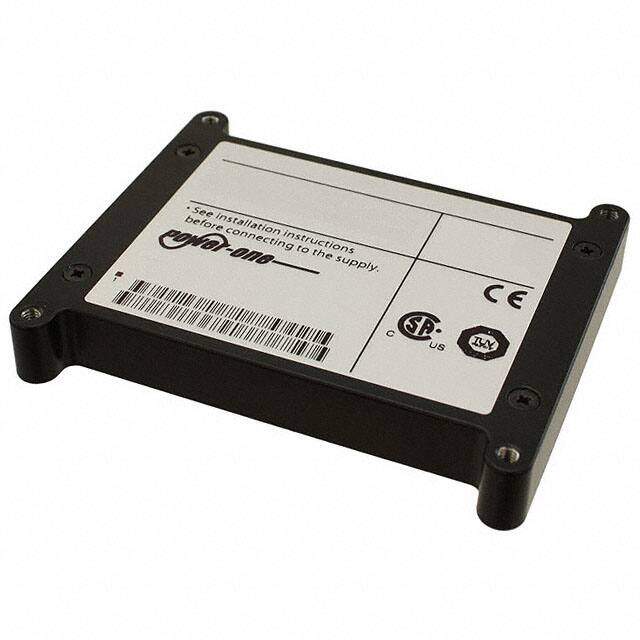

40IMX35D15D15-8
RoHS
/
Package 19-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 15V 15V 15V 35W
PDF
/
Inventory: 9247
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case 19-DIP Module
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series Melcher IMX35 (35W)
Size / Dimension 3.00Lx2.50W x 0.41 H 76.2mmx63.5mmx10.5mm
Feature OCP, OTP, SCP, UVLO
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Isolated Module, Conformal Coated
Applications ITE (Commercial)
Power (Watts) 35W
Number of Outputs 4
Efficiency 89%
Voltage - Isolation 1.5kV
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Input (Min) 18V
Current - Output (Max) 600mA 600mA 600mA
Voltage - Output 2 15V
Voltage - Output 3 15V
Compliance
RoHS Status Non-RoHS Compliant
