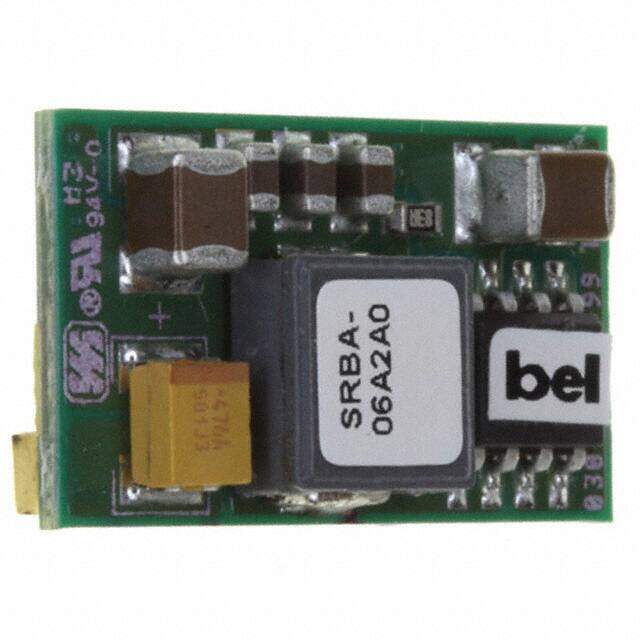

SRBA-06A2A0G
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
CONV DC/DC .75-5.5V ADJ 6A SMD
PDF
/
Inventory: 6194
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 23 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD Module
Number of Pins 6
Technical
Operating Temperature -40°C~85°C
Packaging Tray
Series SRBA
Size / Dimension 0.80Lx0.45W x 0.25 H 20.3mmx1.4mmx6.4mm
Feature Remote On/Off, OCP, SCP, UVLO
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
ECCN Code EAR99
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Max Power Dissipation 33W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 6
Number of Outputs 1
Qualification Status Not Qualified
Efficiency 92%
Voltage - Input (Max) 14V
Output Voltage 5.5V
Max Output Current 6A
Voltage - Output 1 0.75V~5.5V
Voltage - Input (Min) 8.3V
Input Voltage-Nom 12V
Trim/Adjustable Output YES
Output Current 6A
Output Power 33W
Control Features Enable, Active High
Total Power Output-Max 30W
Dimensions
Height 6.35mm
Compliance
RoHS Status ROHS3 Compliant
