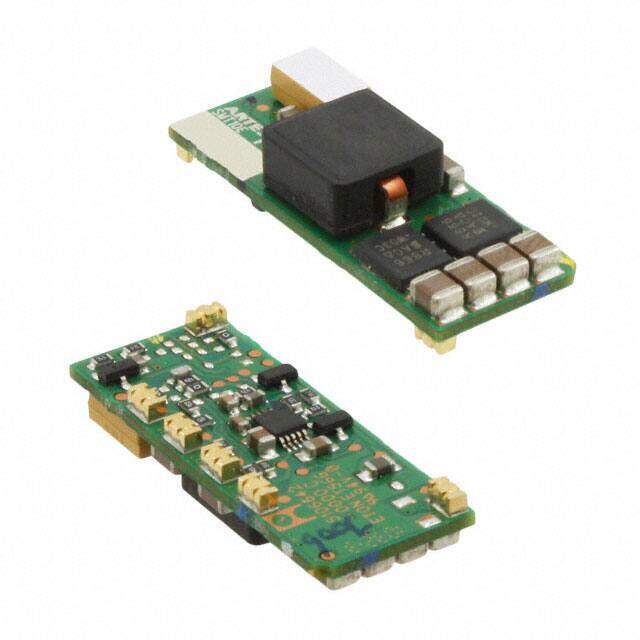

SMT10E-12W3V3
RoHS
/
Package 6-SMD Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.8-3.63V 13W
PDF
/
Inventory: 1713
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Technical
Total Power Output-Max 33W
Current - Output (Max) 10A
Trim/Adjustable Output YES
Input Voltage-Nom 12V
Voltage - Input (Min) 10V
Voltage - Output 1 0.8V~3.63V
Output Voltage 3.3V
Voltage - Input (Max) 14V
Efficiency 94%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XXMA-X6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 13W
Applications ITE (Commercial)
Terminal Finish TIN LEAD
Type Non-Isolated PoL Module
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Remote On/Off, OTP, SCP
JESD-609 Code e0
Size / Dimension 1.30Lx0.53W x 0.32 H 33.0mmx13.5mmx8.1mm
Series SMT10E (13W)
Published 2003
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case 6-SMD Module
Mounting Type Surface Mount
