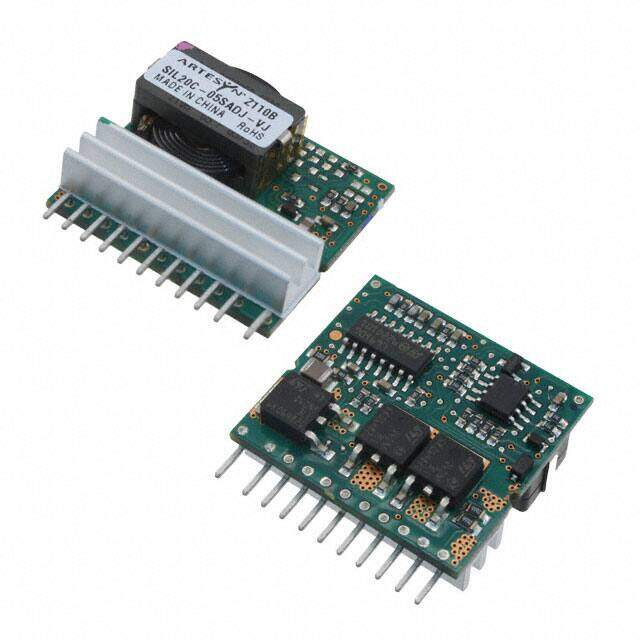

SIL20C-12SADJ-HJ
RoHS
/
Package 13-DIP Module
Category Power Supplies - Board Mount / DC DC Converters
Description
DC DC CONVERTER 0.9-5V
PDF
/
Inventory: 9691
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 13-DIP Module
Technical
Operating Temperature 0°C~80°C
Packaging Bulk
Published 2005
Series SIL20C (100W)
Size / Dimension 1.20Lx0.45W x 1.10 H 30.5mmx11.4mmx27.9mm
Feature Remote On/Off, OCP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Non-Isolated PoL Module
Max Operating Temperature 80°C
Min Operating Temperature 0°C
Applications ITE (Commercial)
Number of Outputs 1
Efficiency 91%
Voltage - Input (Max) 13.8V
Output Voltage 5V
Max Output Current 20A
Voltage - Output 1 0.9V~5V
Voltage - Input (Min) 10.2V
Current - Output (Max) 20A
Output Current 20A
Output Power 100W
Min Input Voltage 10.2V
Max Input Voltage 13.8V
Current - Output 1 20A
Dimensions
Height 27.94mm
Length 30.48mm
Width 11.43mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
